Plastic ceiling board making machine /pvc ceiling panel extruder making machine
- Price
- US $31000-33000
- Model
- SJMS65/132
- Min. Order
- 1 piece
Item specifics
- Extruder type
- Conical double screw extruder
- Extruder model
- SJMS65/132
- Capacity
- 120-240kg/h
- Raw material
- PVC +Caco3 powder+attitives
- Door frame width
- 100-300mm
- Main motor power
- 37kw
- Inventer
- ABB
- Temperature Controller
- OMRON
- Surface treatment
- Laminting or hot stamping
- Production time
- 60-90 days
- pay terms
- 30% down payment +70% balance
- warranty period
- 12 months
Product review
Description

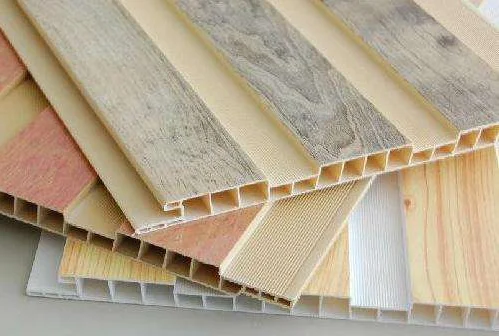

PVC ceiling and wpc wall panel making machine
PVC WPC wall panel extrusion line is suitable for producing the wall pane. The wall panel
can be coated with colorful decorative films. The PVC WPC wall panel has the advantage of fire proof, anticaustic, moisture proof,
moth proof, mildew proof, non-toxic and environmentally friendly. The profile are widely used in interior decoration, etc.
Item | Machine name | Quantity |
1 | Auto feeder | 1 set |
2 | Conical double screw extruder SJMS51/105 | 1 set |
3 | die head and mold(Max.width=200mm) | 1 set |
4 | calibrating machine | 1 set |
5 | hual off machine | 1 set |
6 | cutting machine | 1 set |
7 | product stacker | 1 set |
8 | electric control cabinet | 1 set |
Extruder for PVC ceiling and wpc wall panel making machine
Conical double screw extruder specially designed for making PVC ceiling and wpc wall panel making machine
Model: SJMS51/105 model
Main power: 22KW
Capacity: 120-160 kg/h
Max. product width: 200mm

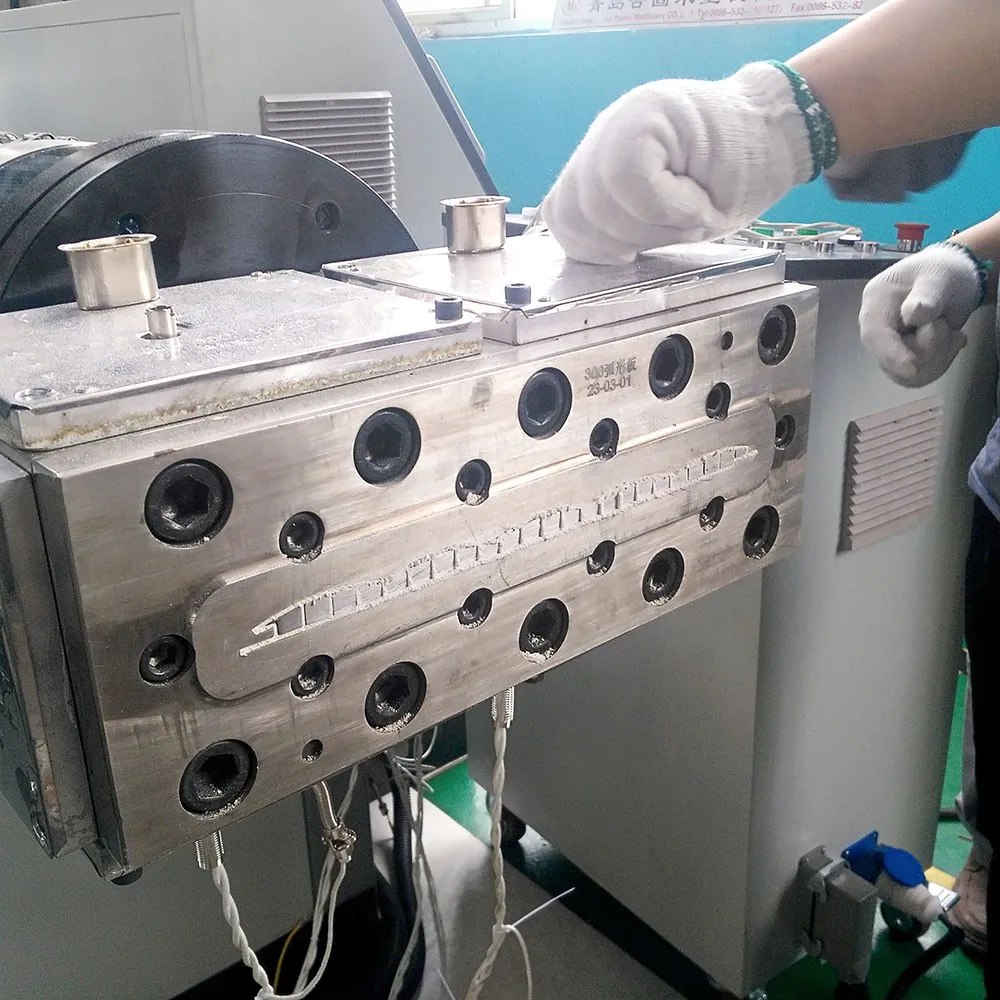

Die head and mold for PVC ceiling and wpc wall panel making machine
For making PVC ceiling and wpc wall panel making machine, it is necessary to increase the calibrator length to be 300mm*3 piece or 300*4 piece.
and the water cooling tank should be 2000mm*2 pcs or 3000mm*2 pcs
calibrating machine for PVC ceiling and wpc wall panel making machine
Length of table: 6meter customized
width of table: 1100mm, valiable inner width is 600mm
material of table: stainless steel
cooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets
water pump: 2.2kw*1 set

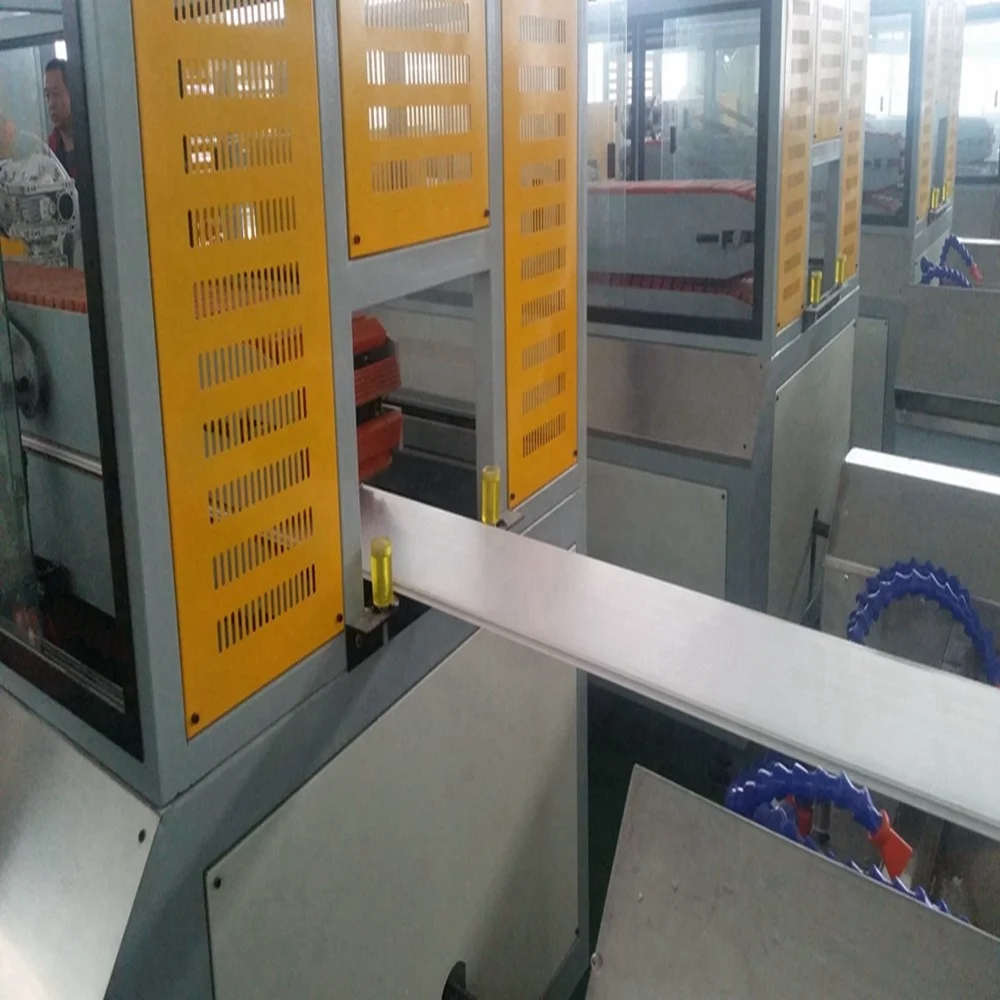

haul off machine for PVC ceiling and wpc wall panel making machine
Haul off type: double caterpillar
length of haul off: 2.4 meter
control of haul off: frequency control
motor : 1.5 kw
gearbox: double gearbox
Cutting machine forPVC ceiling and wpc wall panel making machine
cutting method: automatic cutting
cutting control: PIC control
Length: fix length cutting
