Price
US $38000-43000
Model
SJMS65/132
Min. Order
1 piece

Item specifics

Extruder type
Conical double screw extruder
Extruder model
SJMS65/132
Capacity
120-240kg/h
Raw material
PVC +Caco3+attitives
Door frame width
100-300mm
Main motor power
37kw
Inventer
ABB
Temperature Controller
OMRON
Surface treatment
Laminting or painting
Production time
60-90 days
pay terms
30% down payment +70% balance
warranty period
12 months

Product review

Description

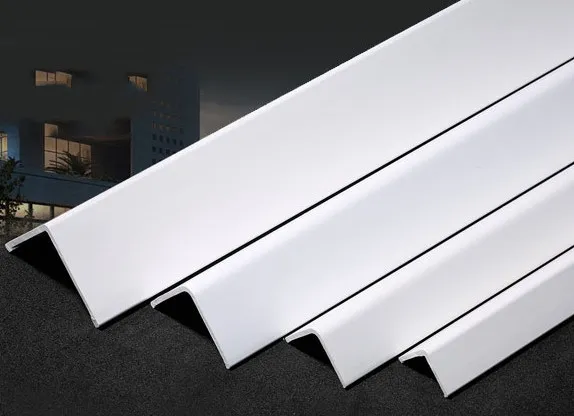

PVC / WPC profile making machine for window and door profile,ceiling,wall panel,skirting....

PVC / WPC profile extrusion line mainly use PVC or UPVC or PVC+wood powder to extruder profile such as building partition, cabinet door panels, window sill, skirting board, door edgeline, door jamb, window shutters, photo frame, mirror frame, furniture edge banding, door frame, door pocket, window pocket, column profile, stair handrail, floor board, decoration cladding panel, furniture, WPC pipes, etc.

Item
Machine name
Quantity
1
Auto feeder
1 set
2
SJSZ65/132 extruder
1 set
3
ASA co extruder to get wooden grain
1 set
4
pvc seal gasket extruder
1 set
5
die head and mold
1 set
6
calibrating machine
1 set
7
hual off machine
1 set
8
cutting machine
1 set
9
product stacker
1 set
10
electric control cabinet
1 set

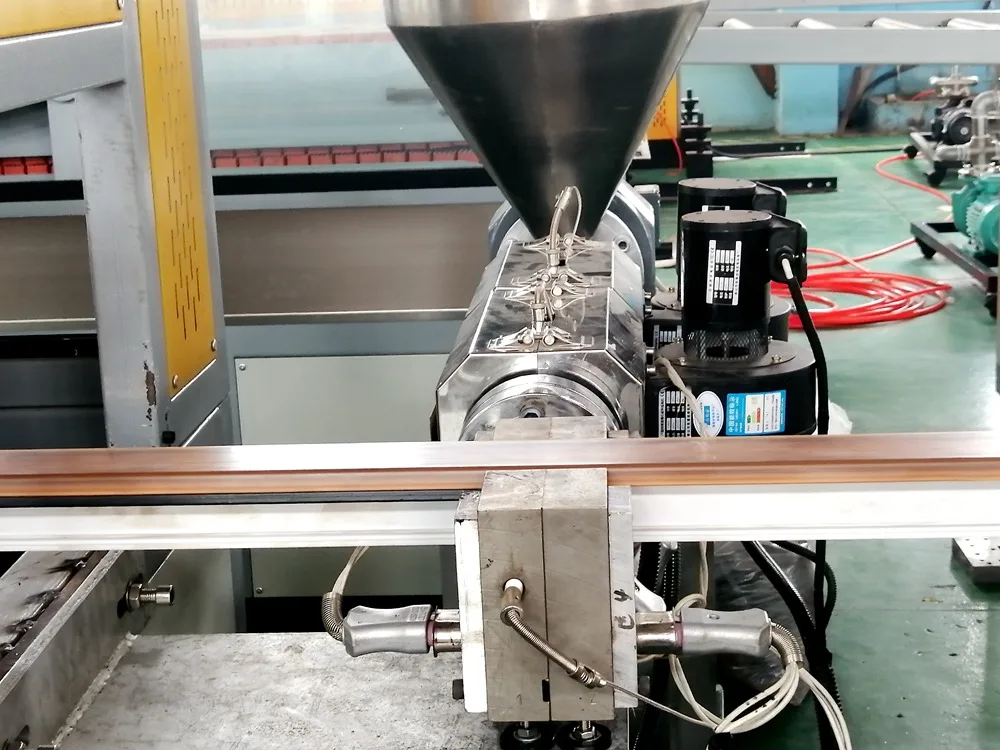

Extruder for PVC window profiles making machine
Conical double screw extruder specially designed for making PVC window profiles door frame.
Model: SJMS65/132 model
Main power: 37KW
Capacity: 150-240 kg/h
Max. product width: 300-600mm

Extruder for PVC window profiles making machine

SIEMENS motor

ABB inverter

OMRON temperature controller

SIEMENS low voltage appliance

double screw feeding device

bimetallic screw

vertical gear box

ASA extruder
this extruder is used to produce ASA wood grain layer
co extrusion type
pvc upvc window profile mold
the mould material is 3Cr17
calibrator length to be 300mm*3 piece or 300*4 piece or design according to product
and the water cooling tank will be 2000mm*2 pcs or 3000mm*2 pcs or design according to product

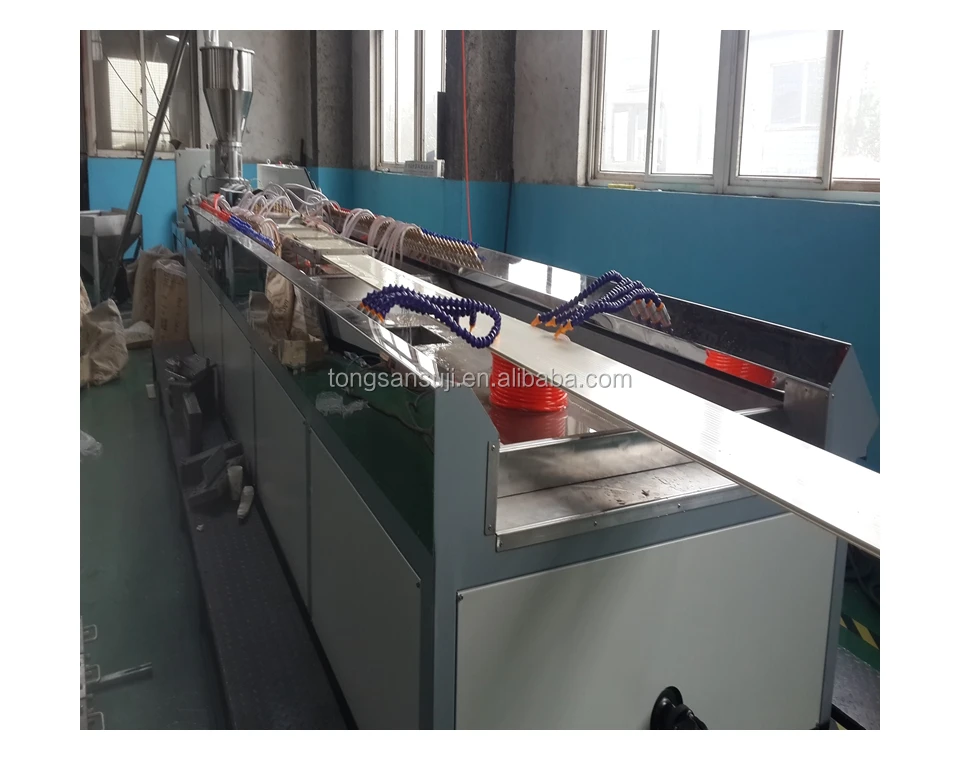

calibrating machine PVC window profiles making machine
Length of table: 6meter or 8meter customized
width of table: 1100mm, valiable inner width is 600mm
material of table: stainless steel
cooling method: water cooling and vacuum cooling.
vacuum pump: 7.5kw*1 sets,+5.5kw*2 sets
water pump: 2.2kw*1 set

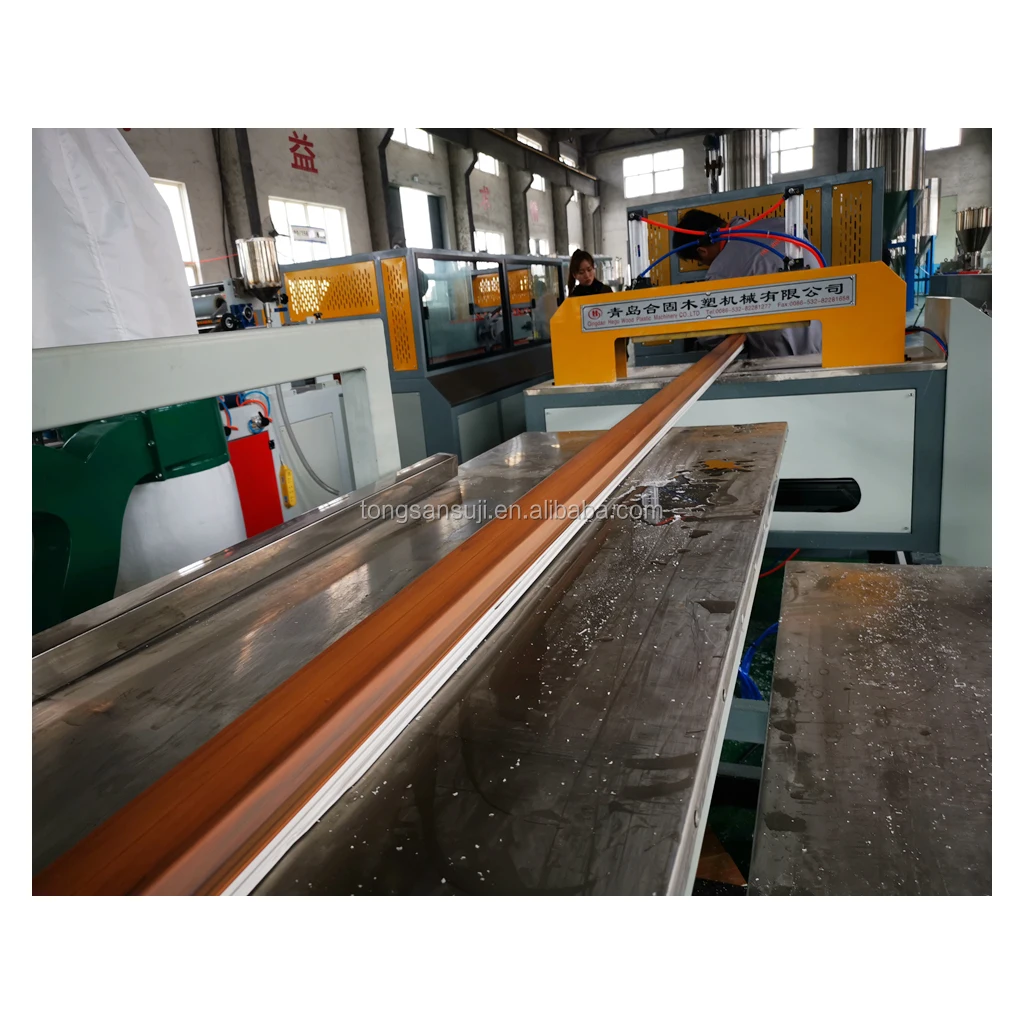

haul off machine for PVC window profiles making machine

Haul off type: double caterpillar

length of haul off: 2.4 meter

control of haul off: frequency control

motor : 1.5 kw

gearbox: double gearbox

Cutting machine for PVC window profiles making machine

cutting method: automatic cutting

cutting control: PID control

Length: fix length cutting

pvc seal gasket extruder
this extruder used to extrude pvc seal gasket online
